CNC Productivity has moved machines within New York State, within the United States mainland and exported from the United States.   The machines have been as light as several hundred pounds and as heavy as 40,000 lbs.

As a Field Service company, CNC Productivity can inspect a machine prior to shutdown, shutdown the machine in accordance with the manufacturers specifications, disassemble the machine if necessary, move the machine or machine parts, reassemble the machine, startup the machine and check the machines performance to insure it is operating as it was before the shutdown and move.   Please review the projects and services provided for the companies and involving the equipment listed below.

CNC Productivity has extensive experience rigging equipment.   Customers often need expert help relocating machines within work areas or between production locations.   CNC Productivity can do the entire job or work with a companies staff to reduce costs. Our services include: disconnect, move, setup, reconnect, level, square, tram and laser alignment.

Protect your investment, contact CNC Productivity anytime for a no-obligation estimate or fixed price quotation.


Tallest machine moved

Horizon

Rochester, NY

$5260.00


White vertical storage carousel

Pictures of disassembly at original location

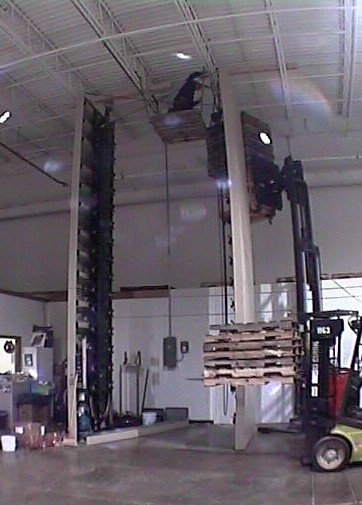

Vertical storage carousel on location - starting to rig for disassembly

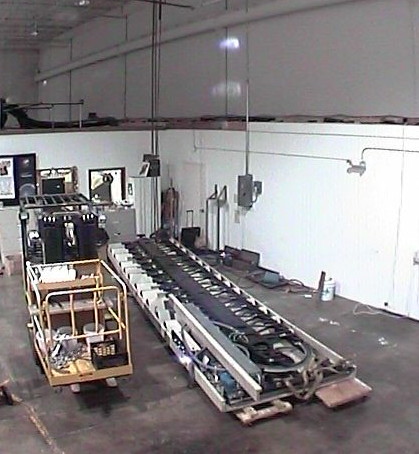

Second stage of carousel disassembly

Ready to transport at original location


Pictures of assembly at destination

Start carousel reassembly in new Rochester NY location

destination reassembly in process

Reassembled carousel at new destination


Heaviest machine moved

Higgins Erectors & Haulers Inc. Buffalo, NY


Mitsui Seiki
cnc jig bore / mill


Weight 40,000 lbs

Mitsui Jig bore rigging

Jig bore rigged to move

CNC Productivity was subcontracted to prepare this machine for shipping, move it from its original location and place it for the crane pick.   The machine had to be moved about 20 ft, rotated 180 degrees, moved about 100 ft, change direction and then about 20 ft into position.   This move was done over a linoleum shop floor without damaging the floor.   The situation was difficult due to limited height and width clearances.   CNC Productivity also provided manufacturer's rigging information to Higgins for the crane pick.

Example of a group of machines moved

RTD Manufacturing   Rome, NY

$4500.00

Pratt & Whitney TapeMate D
5500 LBS

Matsuura MCV 1000VDC3
16000 lbs

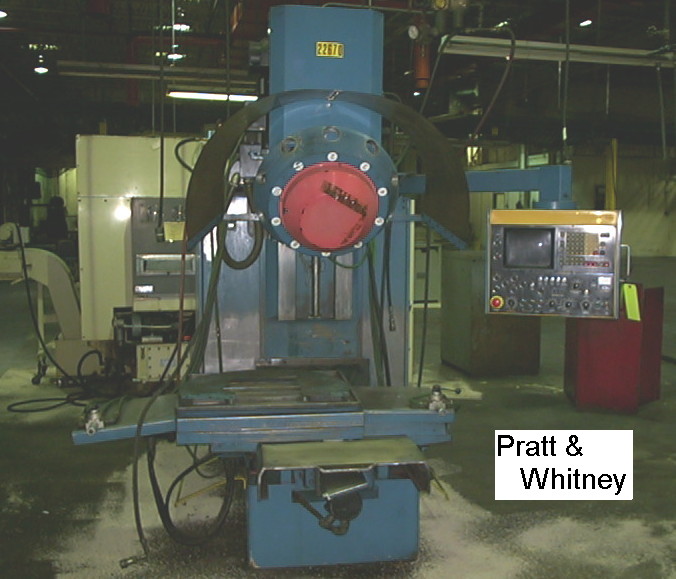

Pratt & Whitney Tapemate rigged to move

MATSURA rigged to move

CNC Productivity was contracted to move 3 Pratt & Whitney TapeMate D (5500 LBS each) mills and 1 Matsuura MCV 1000VDC3 (16000 lbs) from Troy, NY to Rome, NY (120 miles one way), place machines at destination and rough level Matsuura.

Example of disassembly, transportation, delivery and reassembly

Turner Industries Inc.
Grand Rapids, MI

$5750.00

Dake model 18-338 press
Located in Buffalo, NY

Approximately 17,500 lbs
Moved to Grand Rapids, MI

Dake press assembled on location
click to enlarge

Rigging process for dake press disassembly
click to enlarge

Dake model 18 press rigged for transport
click to enlarge

A Dake model 18-338 press , approximately 17,500 lbs, was located on the 4th floor of the Trico building in Buffalo, NY. The building owner directed that the lights, electrical and piping that were installed after the press was put in place could not be touched while removing the press. CNC Productivity disassembled the press without disturbing any of the items of concern to the building owner, moved the pieces to the ground level, reassembled the press horizontally on the truck bed, drove it out to Grand Rapids, MI and delivered it to Turner Industries Inc. (500 miles one way).

CNC Productivity exports

CNC Productivity has located, purchased and exported machines for the following customers:

Company Country Machine

Andres Arias  Dominican Republic mill
Jose Blanco Dominican Republic mills (2)
Technica de Moldeo de Precision Dominican Republic mill
